| Nom De Marque: | Hua Power |
| Numéro De Modèle: | HC16A |

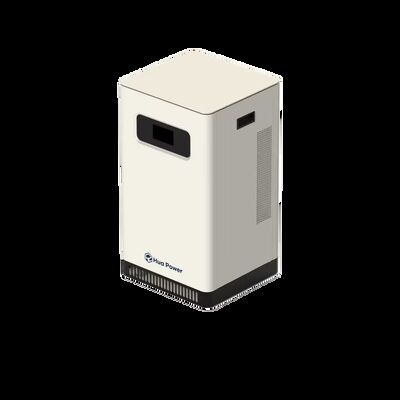

The HC16A is a 6kW / 16kWh all-in-one residential energy storage system designed for home solar and backup power applications.
It integrates an inverter and LFP battery into a compact unit, simplifying installation and reducing system complexity.
Built with a triple fire protection design and system-level safety architecture, HC16A ensures reliable and safe operation for residential users.
The LFP battery supports over 6000 charge-discharge cycles, delivering long-term performance with up to a 10-year service life.
With modular internal design and smart energy management capability, HC16A optimizes self-consumption, enhances energy independence, and provides a stable, efficient home energy solution.
| AC Input | |
| Rated Voltage | 208V/220V/230V/240V;L+N+PE |
| Voltage Range | 90V~280V±3(normal mode),170V~280V±3(UPS mode) |
| Frequency | 50Hz/60Hz(Auto Adaptive) |
| AC Output | |
| Rated Capacity | 6kW |
| Surge Power | 12kVA |
| Rated Voltage | 208V/220V/230V/240V |
| Power Factor | 1 |
| Frequency | 50Hz/60Hz±0.1% |
| Switch Time | 10ms |
| Overload Capacity(Battery Mode) | 60s@102%~110%,10s@110%~130% 3s@130%~150%,0.2s@≥150% |
| Max.Efficiency(Battery Mode) | 93%@48VDC |
